CAT#:
60-097
Sartorius

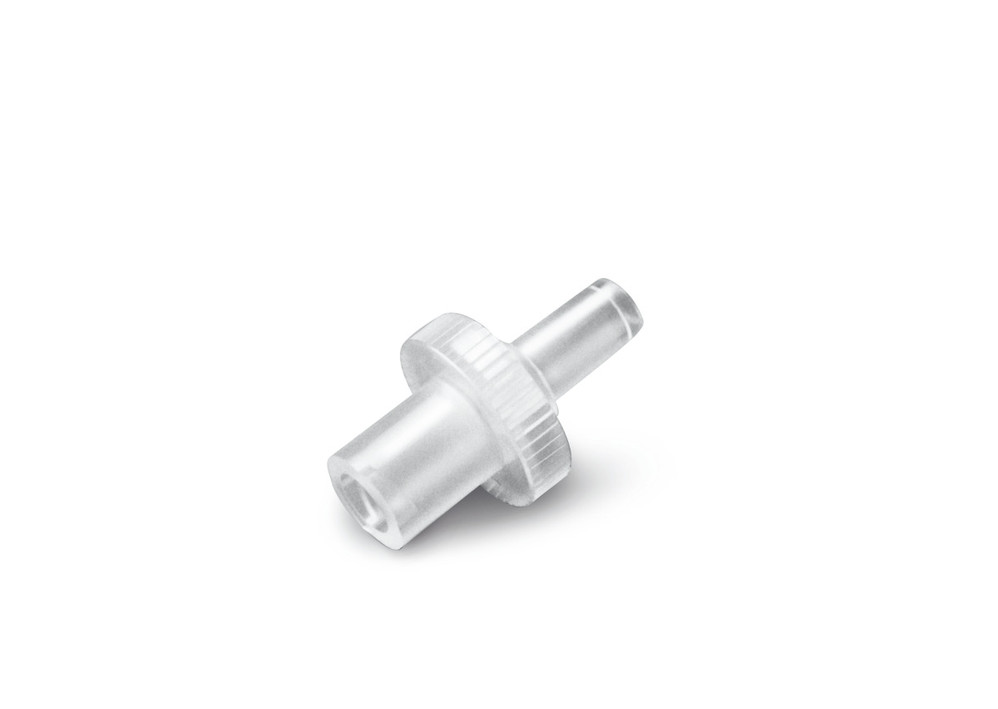

Minisart® RC4 Syringe Filter, Regenerated Cellulose
0.2µm, 4mm, Cellulose, 1 Filters/Unit
0.45µm, 4mm, Cellulose, 1 Filters/Unit
2 product variations: View Options
Product Overview
- A pouch in one pack for less waste
- Minimum extractables or leachables
- Highest chemical compatibility
- Suitable as venting filter
Product Overview
- A pouch in one pack for less waste
- Minimum extractables or leachables
- Very low non-specific binding
- Outperforming chemical compatibility
Technical Specifications
| Application | Ultracleaning of aqueous and organic solutions |
| Application Area | Analytical sample preparation |
| Extractables | Lot-specific HPLC certificate |
| Connector Inlet | Female Luer Lock |
| Connector Outlet | Male Luer Slip |
| Filter Diameter | ⌀ 4 mm |
| Filtration Area | 0.1 cm² |
| Filter Paper/membrane Color | Blue |
| Flow Rate | ≥ 0.5 mL/min for water at 1 bar (14.5 psi) | ≥ 1.5 mL/min for methanol at 1 bar (14.5 psi) |
| Total Throughput | Up to 1 mL |
| Ph Range | 3.0 – 14.0 |
| Housing Material | Polypropylene (PP) |
| Membrane Material | Regenerated Cellulose (RC) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4.5 bar (65 psi) |
| Bubble Point | ≥ 3.0 bar (44 psi) with water |
| Burst Pressure | ≥ 7.0 bar (102 psi) |
| Pore Size | 0.2 µm |
| Wettability | Hydrophilic |
| Brand | Minisart® RC |
| Device Type | Syringe Filters |
| Pack Size | 50 |
| Packaging | Bulk packed |
| Sample Type | Aqueous Solvents Solvent Mixtures |
| Delivery Condition | Non-Sterile |
| Sterilization Method | Ethylene oxide Autoclave |
| Hold-up Volume | ≤ 5 – 10 µL |
Technical Specifications
| Application | Ultracleaning of aqueous and organic solutions |
| Application Area | Analytical sample preparation |
| Extractables | Lot-specific HPLC certificate |
| Connector Inlet | Female Luer Lock |
| Connector Outlet | Male Luer Slip |
| Filter Diameter | ⌀ 4 mm |
| Filtration Area | 0.1 cm² |
| Filter Paper/membrane Color | Yellow |
| Flow Rate | ≥ 1.5 mL/min for water at 1 bar (14.5 psi) | ≥ 3 mL/min for methanol at 1 bar (14.5 psi) |
| Total Throughput | Up to 1 mL |
| Ph Range | 3.0 – 14.0 |
| Housing Material | Polypropylene (PP) |
| Membrane Material | Regenerated Cellulose (RC) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4.5 bar (65 psi) |
| Bubble Point | ≥ 2.0 bar (29 psi) with water |
| Burst Pressure | ≥ 7.0 bar (102 psi) |
| Pore Size | 0.45 µm |
| Wettability | Hydrophilic |
| Brand | Minisart® RC |
| Device Type | Syringe Filters |
| Pack Size | 50 |
| Packaging | Bulk packed |
| Sample Type | Aqueous Solvents Solvent Mixtures |
| Delivery Condition | Non-Sterile |
| Sterilization Method | Ethylene oxide Autoclave |
| Hold-up Volume | ≤ 5 – 10 µL |
Technical Documents
- Laboratory Filtration Products Catalog
- The Advantages of Minisart® Hydrophilic Syringe Filters for HPLC Sample Preparation
- Minisart® RC Syringe Filters for HPLC Sample Preparation — RC versus PVDF used with Methanol and Acetonitrile
- Minisart® Syringe Filters for HPLC Sample Preparation
- HPLC-Certificate — Minisart® Syringe Filters for Sample Preparation – reliable and ultrapure
- Instructions for Use - Minisart®-RC | SRP | NY | PES
- Minisart® Chemical Compatibility Guide
Technical Documents
- Laboratory Filtration Products Catalog
- The Advantages of Minisart® Hydrophilic Syringe Filters for HPLC Sample Preparation
- Minisart® RC Syringe Filters for HPLC Sample Preparation — RC versus PVDF used with Methanol and Acetonitrile
- Minisart® Syringe Filters for HPLC Sample Preparation
- HPLC-Certificate — Minisart® Syringe Filters for Sample Preparation – reliable and ultrapure
- Instructions for Use - Minisart®-RC | SRP | NY | PES
- Minisart® Chemical Compatibility Guide
Detailed Description
Non-sterile Minisart® RC syringe filters are supplied in a pouch in one pack. This reduces waste and makes the handling easier whenever the application allows clarification under non-sterile conditions, like this is the case for the majority of sample preparation steps prior to HPLC or GC analysis. The RC membrane is the best option for reliable and leachable free filtration. The very low non-specific binding characteristics of this membrane makes it a perfect choice for aqueous samples and solvents. In addition, unlike PVDF filters, those with RC membranes are suitable for DMSO and other amides, or for ketones, esters, and ethers. The housing of the filter is made of PP (polypropylene) which is compatibility with harsh solvents, acids and bases.
2 Product Options
Catalog Number:
60-097
List Price:
$159.83
Your Price:
$137
Specifications:
| Pore Size | 0.22µm |
| Membrane Material | Regenerated Cellulose |
| Diameter | 4mm |
| Sterility | Non-Sterile |
| Description | 0.2µm, 4mm, Cellulose |
| Qty/Unit | 1 Filters/Unit |
Catalog Number:
60-098
List Price:
$159.83
Your Price:
$137
Specifications:
| Pore Size | 0.45µm |
| Membrane Material | Regenerated Cellulose |
| Diameter | 4mm |
| Sterility | Non-Sterile |
| Description | 0.45µm, 4mm, Cellulose |
| Qty/Unit | 1 Filters/Unit |
!
