CAT#:
86-1962
Eppendorf

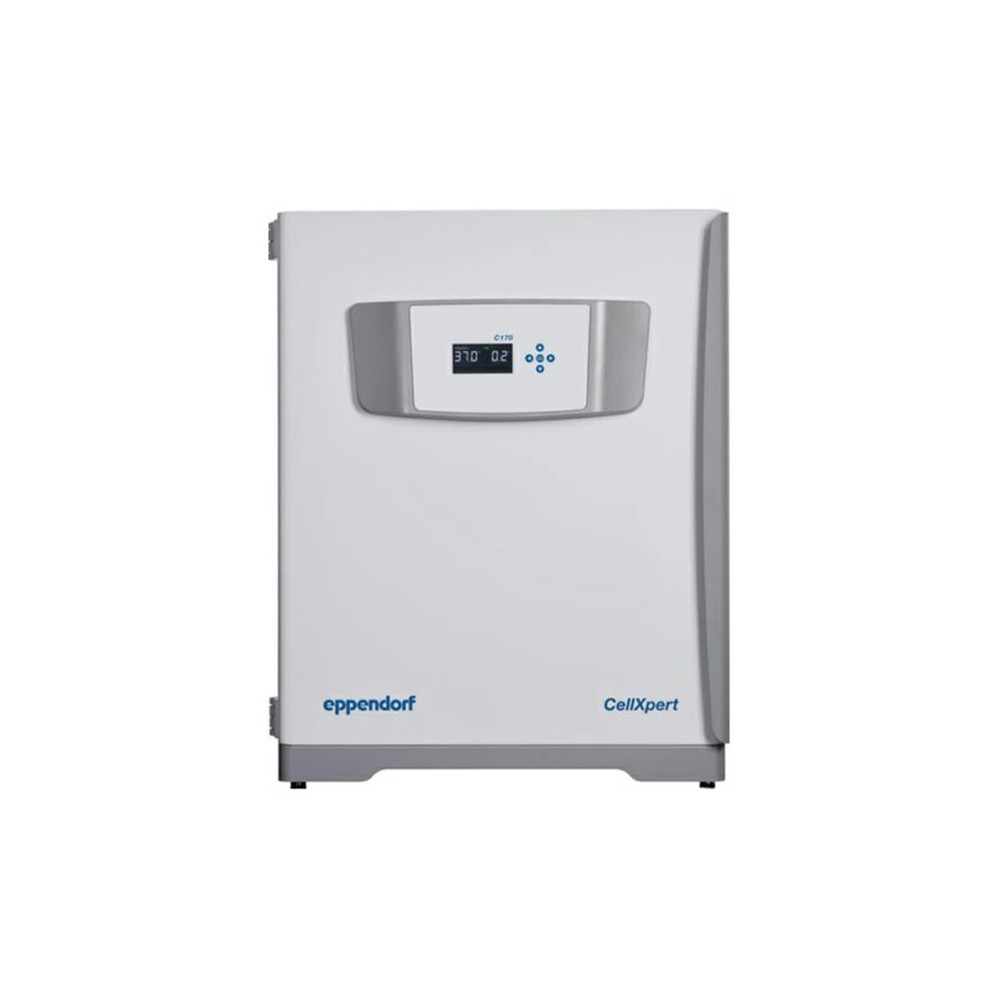

CellXpert® C170 CO₂ Incubators
Right Handle, 4 Doors, 1 Incubator/Unit
Standard Display, Right Handle, 1 Incubator/Unit
2 product variations: View Options
Product Overview
- Up to 25 % more space: Fan-less design, smart racking system and innovative insulation concept
- Easy to handle: New magnetic door locking concept for outer and inner doors
- Easy cleaning and disinfection: Seamless chamber, easy disassembling
- Effective contamination protection: 140 °C High Temperature Disinfection (HTD), no internal HEPA-filters
- Temperature Range: Ambient +4C to 50C, CO2 Range: 0.1-20%
- Internal Dimensions: 53.9 x 44.5 x 69.2 cm (21.2 x 17.5 x 27.2 in)
- External Dimensions: 71.8 × 71.5 × 90.0 cm (28.3 × 28.1 × 35.4 in)
- 2 year warranty
Product Overview
- Up to 25 % more space: Fan-less design, smart racking system and innovative insulation concept
- Easy to handle: New magnetic door locking concept for outer and inner doors
- Easy cleaning and disinfection: Seamless chamber, easy disassembling
- Effective contamination protection: 140 °C High Temperature Disinfection (HTD), no internal HEPA-filters
- Temperature Range: Ambient +4C to 50C, CO2 Range: 0.1-20%
- Internal Dimensions: 53.9 x 44.5 x 69.2 cm (21.2 x 17.5 x 27.2 in)
- External Dimensions: 71.8 × 71.5 × 90.0 cm (28.3 × 28.1 × 35.4 in)
- 2 year warranty
Technical Specifications
| Capacity | 170 L (6.0 ft3) |
| Power Supply | 100 – 127 V, 50 – 60 Hz |
| Dimensions (W x D x H) | 71.8 × 71.5 × 90.0 cm / 28.3 × 28.1 × 35.4 in |
| Product Weight | 113 kg / 249 lb |
| High Temperature Disinfection (HTD) | 140 °C |
| Sealed Inner Glass Doors | yes |
| Segmented Door Options | 4 segments |
| Temperature Control Increment | ±0.1 °C |
| Temperature Stability At 37 °c | ±0.1 °C |
| Temperature Range | Ambient +4 °C to 50 °C |
| Temperature Uniformity | ±0.3 °C |
| CO2 range | 0.1 – 20 % |
| CO2 control Increment | ±0.1 % |
| CO2 Stability At 5 % CO2 | ±0.1 % |
| CO2 Uniformity | ±0.1 % |
| Number Of Shelves (standard/max) | 3 (4 with 4-segmented door)/8 |
| Max. Load/shelf | 10 kg |
| Max. Load/rack | 40 kg |
| Data Export Interface | Ethernet |
| Benchtop (B), Under Bench (U), Floor (F) Or Stackable (S) | B, U, F, S (x2) |
| Copper Package | – |
| Access Port | 2 |
| On-board Data Logging | – |
| Water/humidity Monitoring | – |
| BMS Relay | yes |
| Temperature Accuracy | ±0.3 °C |
Technical Documents
- CellXpert® C170 CO2 Incubator
- CellXpert® CO2 Incubators: C170i or C170?
- Culture of Tomorrow
- Save Gas and Energy with Your Eppendorf CO2 Incubators
- VisioNize Lab Suite Incubator Flyer
- CellXpert C170 / i
- Gas Analyzer for Incubators
- Lithium cell AI module
- CellXpert C170
- Stacking Stand for CellXpert C170/C170i
- Universal Stacking Stand for CellXpert C170/C170i and Galaxy 170 S/170 R
- 030 – Effective Contamination Control with CO2 Incubators
- 050 – CO2 Incubators – Making the Best Choice for Your Lab
- 051 – CO2 Incubator Maintenance – Guide for Set-up and Care
- 056 – CO2 Incubator Temperature Control: What Is the Best Place For Your Cell Culture Vessels?
- 057 – How to Remove Contamination in a Cell Culture Lab
- 062 – CO2 Incubators with Segmented Doors
- 066 – CO2 Incubator with Copper Interior
- 071 – How Can I Improve Sustainability in My Lab?
- 072 – Laboratory Waste – Immutable Fact of Life, or Opportunity for Change?
- 338 – Low Oxygen Levels Enhance the Efficiency of Reprogramming Human Somatic Cells to Pluripotency
- 437 – Standardized and Water-free Cell Thawing using the Eppendorf ThermoMixer® C with the Eppendorf SmartBlockTM cryo thaw
- 443 – Hypoxia and iPSC: A Low Oxygen Atmosphere Supports the Xeno-free Generation, Expansion, and Differentiation of Human Induced Pluripotent Stem Cells
- CellXpert® CO2 Incubators – Cut Costs & Deliver Results
- How Do You Identify a Cost-Efficient & Sustainable CO2 Incubator?
- Remote and quantitative cell culture monitoring: Vero cells
Technical Documents
- CellXpert® C170 CO2 Incubator
- CellXpert® CO2 Incubators: C170i or C170?
- Culture of Tomorrow
- Save Gas and Energy with Your Eppendorf CO2 Incubators
- VisioNize Lab Suite Incubator Flyer
- CellXpert C170 / i
- Gas Analyzer for Incubators
- Lithium cell AI module
- CellXpert C170
- Stacking Stand for CellXpert C170/C170i
- Universal Stacking Stand for CellXpert C170/C170i and Galaxy 170 S/170 R
- 030 – Effective Contamination Control with CO2 Incubators
- 050 – CO2 Incubators – Making the Best Choice for Your Lab
- 051 – CO2 Incubator Maintenance – Guide for Set-up and Care
- 056 – CO2 Incubator Temperature Control: What Is the Best Place For Your Cell Culture Vessels?
- 057 – How to Remove Contamination in a Cell Culture Lab
- 062 – CO2 Incubators with Segmented Doors
- 066 – CO2 Incubator with Copper Interior
- 071 – How Can I Improve Sustainability in My Lab?
- 072 – Laboratory Waste – Immutable Fact of Life, or Opportunity for Change?
- 338 – Low Oxygen Levels Enhance the Efficiency of Reprogramming Human Somatic Cells to Pluripotency
- 437 – Standardized and Water-free Cell Thawing using the Eppendorf ThermoMixer® C with the Eppendorf SmartBlockTM cryo thaw
- 443 – Hypoxia and iPSC: A Low Oxygen Atmosphere Supports the Xeno-free Generation, Expansion, and Differentiation of Human Induced Pluripotent Stem Cells
- CellXpert® CO2 Incubators – Cut Costs & Deliver Results
- How Do You Identify a Cost-Efficient & Sustainable CO2 Incubator?
- Remote and quantitative cell culture monitoring: Vero cells
Detailed Description
The C170 is the more economical, basic version of the C170i. If you need, e.g. more future flexibility, O2 control, copper interior, humidity monitoring, advanced documentation, user management, or if you have a requirement for 180 °C disinfection – the C170i is recommended.
2 Product Options
Catalog Number:
86-1962
List Price:
$19525.11
Your Price:
$16735.81
Specifications:
| Door Handle | Right |
| Copper Interior | No |
| O2 Control | No |
| Inner Doors | Inner Door with 4 Segments |
| Water/Humidity Monitoring | No |
| Description | Right Handle, 4 Door |
| Qty/Unit | 1 Incubator/Unit |
Catalog Number:
86-1931
List Price:
$16082.19
Your Price:
$13784.74
Specifications:
| Door Handle | Right |
| Copper Interior | No |
| O2 Control | No |
| Inner Doors | Non-segmented Inner Door |
| Water/Humidity Monitoring | No |
| Description | Standard Display, Right Handle |
| Qty/Unit | 1 Incubator/Unit |
| Catalog # | Description | Qty/Unit | Door Handle | Copper Interior | O2 Control | Inner Doors | Water/Humidity Monitoring | Price (USD) | Quantity | Add to Order | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 86-1931 | Standard Display, Right Handle | 1 Incubator/Unit | Right | No | No | Non-segmented Inner Door | No | ||||
| 86-1962 | Right Handle, 4 Door | 1 Incubator/Unit | Right | No | No | Inner Door with 4 Segments | No |
