World's first robotic liquid handling system with a built-in miniature camera
Ability to view and position the pipette head to insert directly into the center of the tip well
Pipette head optimized for multi-dispensing and tip-reuse for faster sample loading
Comes complete with UV LED lights and HEPA filter to ensure a clean qPCR workstation
Pressure based liquid level sensor will alert user of any aspirating and dispensing errors
Interchangeable pipette allows flexibility and accuracy with your workflow
Compact and lightweight design allows instrument to fit perfectly in any qPCR setting
2-year warranty
Technical Specifications
Brand
Bio Molecular System
Color
Red
Position Control
Closed loop, 100µm resolution
Level Detection Type
Pressure sensing
Calibration
High precision camera
Strategy
Single or multi-dispense
Operation Requirements
Intel Core i3 or equivalent, 4GB RAM, 5GB disk space
Operating Temperature Range
18 - 30°C
Humidity Range
30 - 80%
Pipette Volume
1 - 50µl
Pipette Tips Per Rack
384
Dimensions (W x D x H)
460 x 360 x 310mm
Warranty
2 year
Videos
Myra Liquid Handling Introduction
Detailed Description

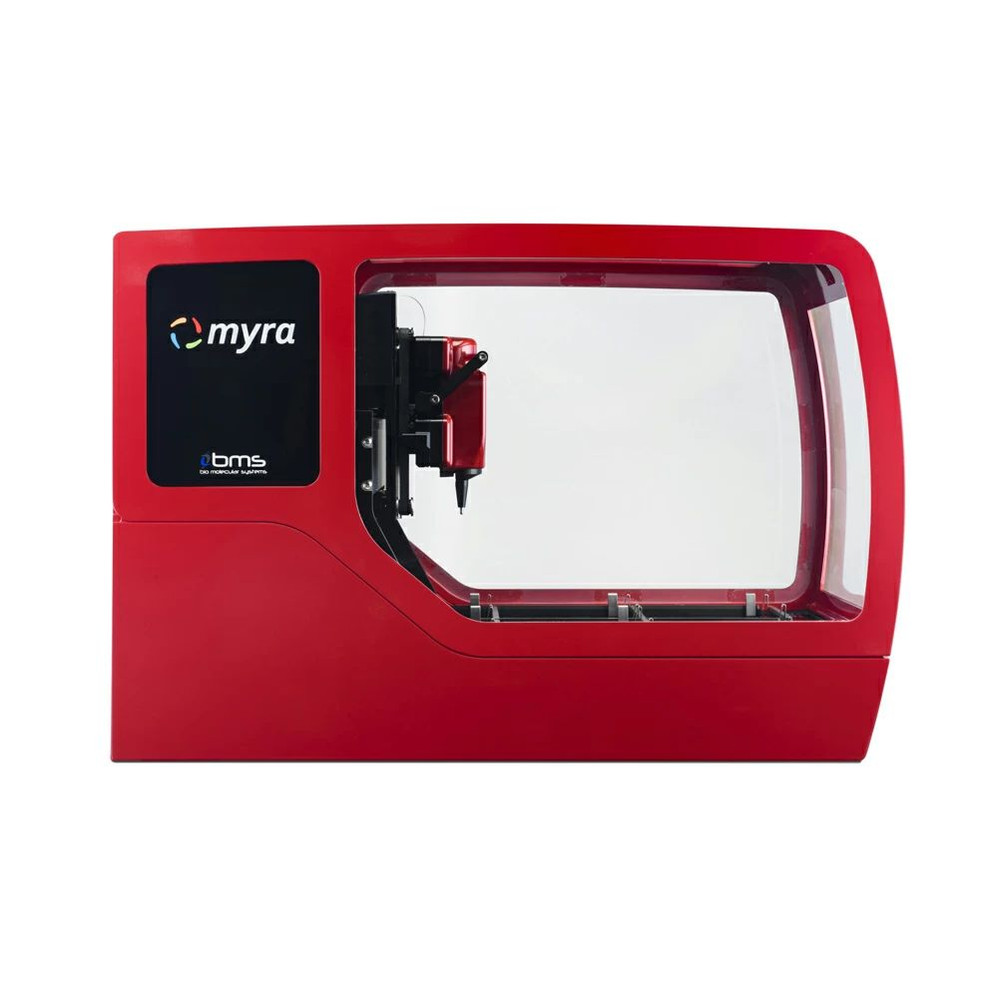

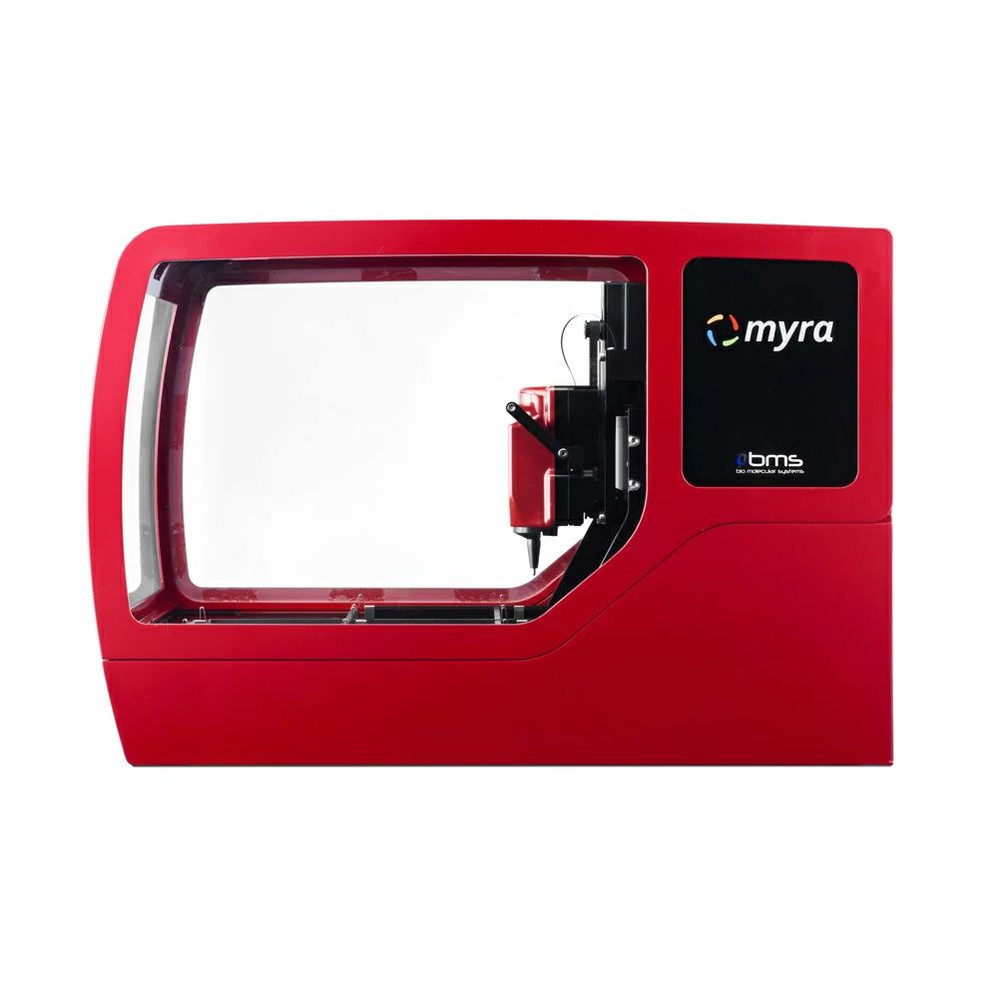

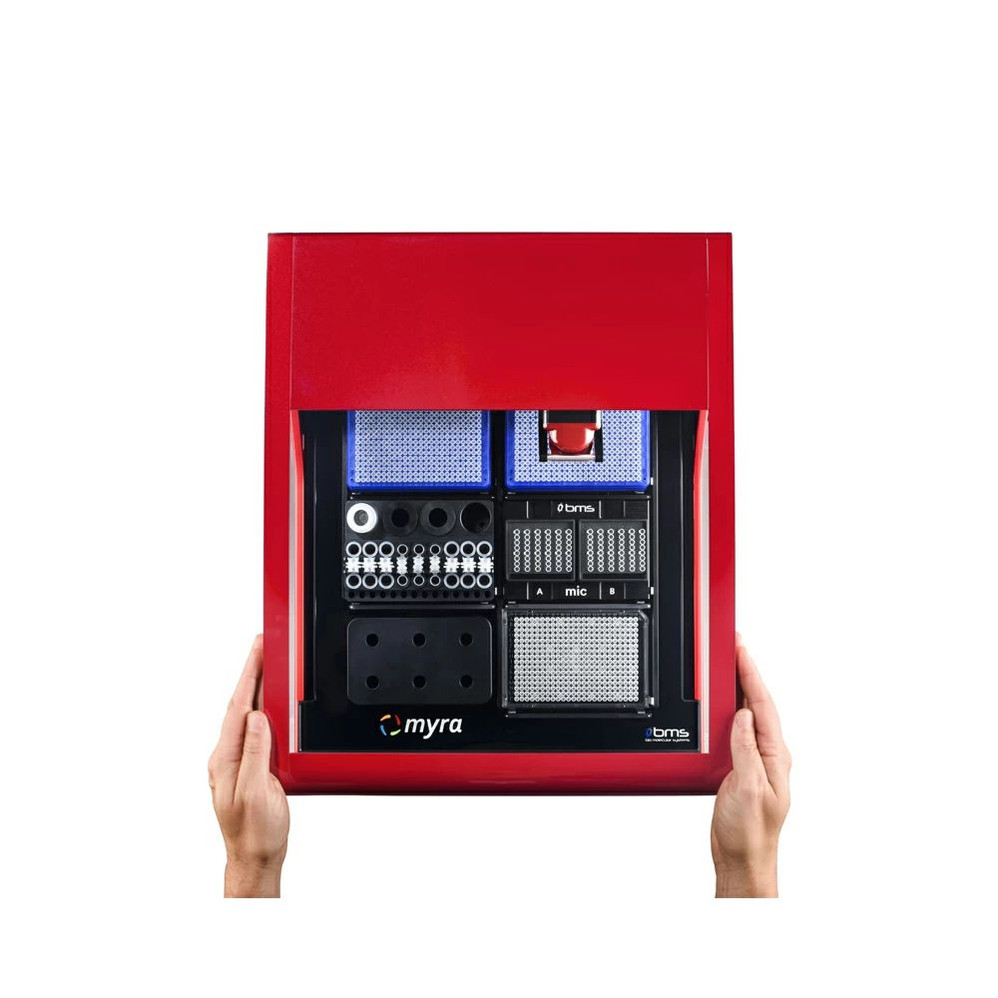

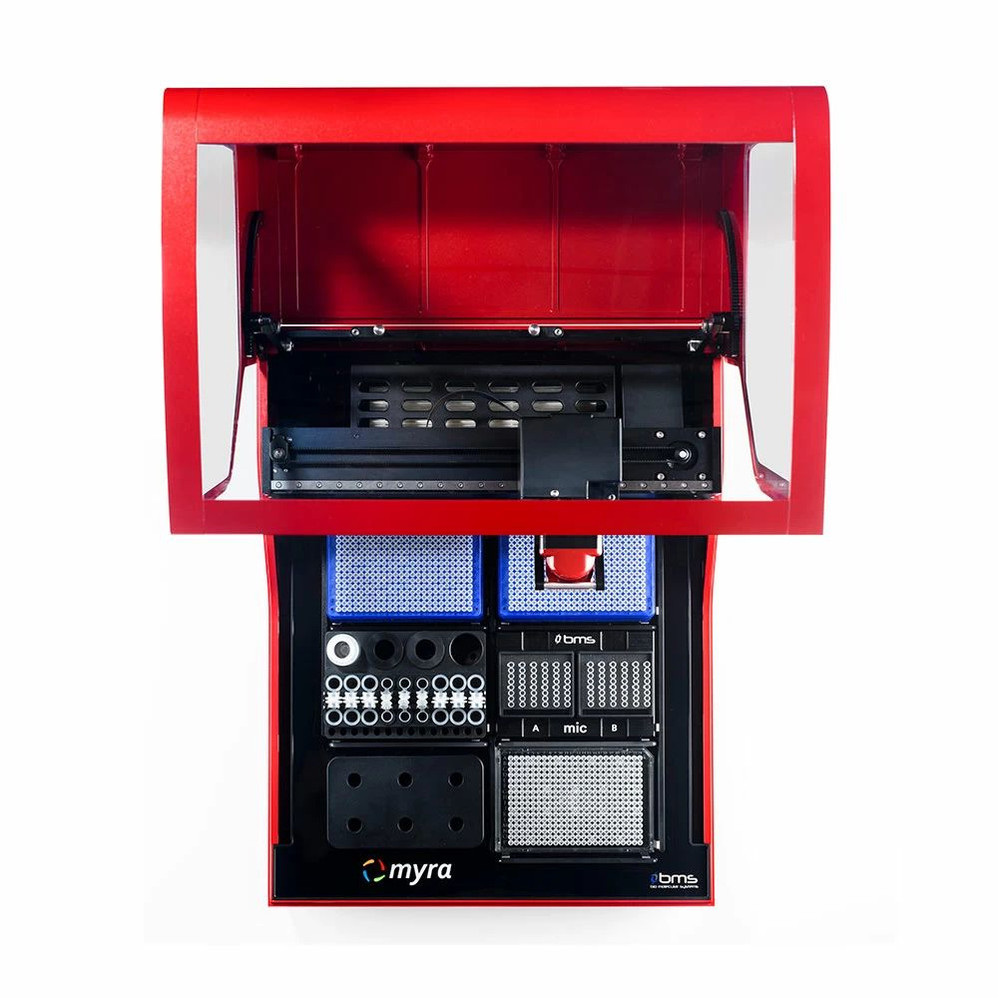

Myra automated pipetting system makes sample preparation effortless prior to any PCR run. This instrument comes with a built-in camera that provides full visibility of pipette and tip placement. The simple design allows users to direct the machine on which samples to pipette from. Its interchangeable pipette heads create flexibility in pipetting from smaller apertures such as 384-well plates and 0.1ml Mic tubes. Designed with the latest motion control, integrated camera and pipette monitoring systems, the Myra will ensure only the best results every time.
Myra comes with: 50µl single channel pipette head, waste tube with lid, multipurpose block, SBS robotic loading block, power adapter (100-240V), UV light, HEPA filter, robot tips, USB cable, USB key with software and manual, calibration certificate, quick start guide, safety information sheet, and power cable (to suite destination country).
