CAT#:
Sartorius

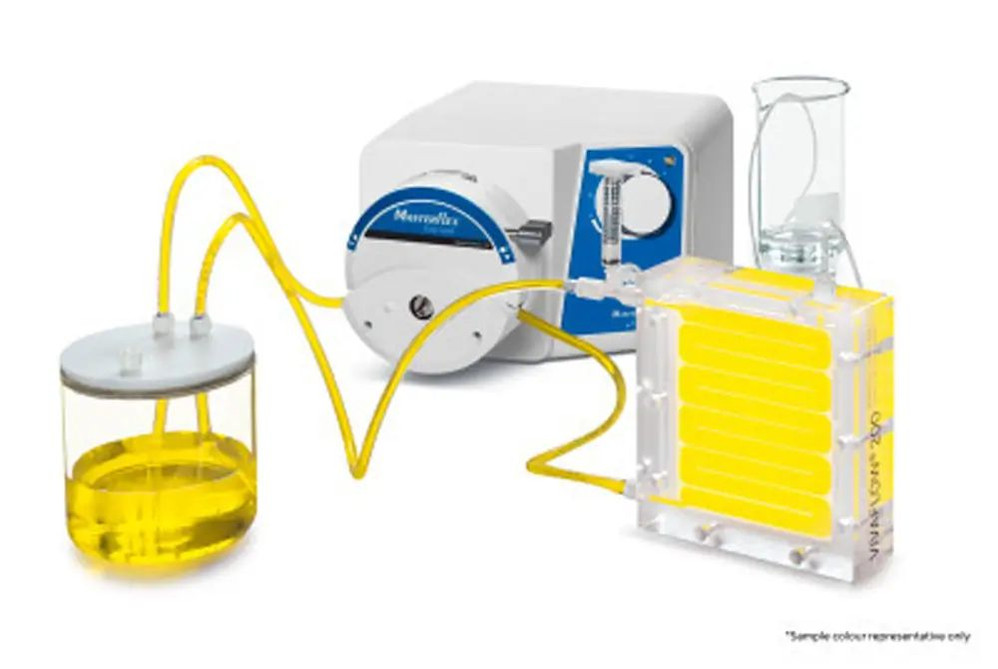

Vivaflow® 200 PES
5,000 MWCO, PES, 1 Vivaflow/Unit
30,000 MWCO, PES, 1 Devices/Unit
0.2µm, PES, 1 Vivaflow/Unit
3,000 MWCO, PES, 1 Vivaflow/Unit
10,000 MWCO, PES, 1 Vivaflow/Unit
100,000 MWCO, PES, 1 Vivaflow/Unit
50,000 MWCO, PES, 1 Devices/Unit
7 product variations: View Options
Product Overview
- Ready-to-use, reusable
- Rapid sample processing
- Two cassettes can be operated in parallel
- Near-total recoveries with a single buffer rinse
- Conveniently supplied with tubing, pressure indicator, flow restrictor and tubing
Product Overview
- Ready-to-use, reusable
- Rapid sample processing
- Two cassettes can be operated in parallel
- Near-total recoveries with a single buffer rinse
- Conveniently supplied with tubing, pressure indicator, flow restrictor and tubing
Product Overview
- Ready-to-use, reusable
- Rapid sample processing
- Two cassettes can be operated in parallel
- Near-total recoveries with a single buffer rinse
- Conveniently supplied with tubing, pressure indicator, flow restrictor and tubing
Product Overview
- Ready-to-use, reusable
- Rapid sample processing
- Two cassettes can be operated in parallel
- Near-total recoveries with a single buffer rinse
- Conveniently supplied with tubing, pressure indicator, flow restrictor and tubing
Product Overview
- Ready-to-use, reusable
- Rapid sample processing
- Two cassettes can be operated in parallel
- Near-total recoveries with a single buffer rinse
- Conveniently supplied with tubing, pressure indicator, flow restrictor and tubing
Product Overview
- Ready-to-use, reusable
- Rapid sample processing
- Two cassettes can be operated in parallel
- Near-total recoveries with a single buffer rinse
- Conveniently supplied with tubing, pressure indicator, flow restrictor and tubing
Product Overview
- Ready-to-use, reusable
- Rapid sample processing
- Two cassettes can be operated in parallel
- Near-total recoveries with a single buffer rinse
- Conveniently supplied with tubing, pressure indicator, flow restrictor and tubing
Technical Specifications
| Application | Macromolecule Concentration Desalting Buffer Exchange |
| Industry | Pharma / Biotech |
| Intended Use | Research Use Only (RUO) |
| Market | Research Environmental |
| Certification | ISO 9001 |
| Fittings | Polyamide (PA) |
| Channel Height | 0.4 mm |
| Channel Width | 10 mm |
| Dimensions Wxdxh | 126 x 38 x 138 mm |
| Membrane Area | 200 cm² |
| Overall Height | 138 mm |
| Pump Flow | 200 – 400 mL/min |
| Tubing | PVC (medical grade) |
| Flow Channel | Acrylic |
| Flow Restrictor | Polypropylene (PP) |
| Housing Material | Acrylic |
| Material O-ring | Seal | Silicone (SI) |
| Membrane Material | Polyethersulfone (PES) |
| Membrane Support | Polypropylene (PP) |
| Pressure Indicator | Polypropylene (PP), Stainless Steel (SS), Polyoxymethylene (POM), Silicone (SIL), Polyamide (PA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| MWCO | 10 kDa |
| Non-recoverable Hold-up | 2 mL |
| Brand | Vivaflow® |
| Device Type | TFF – (Crossflow) |
| Pack Size | 1 |
| Sample Type | Protein Peptide Nanoparticles Virus Nucleic Acid VLP Exosome |
| Dead Stop Volume | N/A |
| Hold-up Volume | 5.3 mL |
| Minimum Recirculation Volume | 20 mL |
| Volume Range | 500 – 5,000 mL |
Technical Specifications
| Application | Macromolecule Concentration Desalting Buffer Exchange |
| Industry | Pharma / Biotech |
| Intended Use | Research Use Only (RUO) |
| Market | Research Environmental |
| Certification | ISO 9001 |
| Fittings | Polyamide (PA) |
| Channel Height | 0.4 mm |
| Channel Width | 10 mm |
| Dimensions Wxdxh | 126 x 38 x 138 mm |
| Membrane Area | 200 cm² |
| Overall Height | 138 mm |
| Pump Flow | 200 – 400 mL/min |
| Tubing | PVC (medical grade) |
| Flow Channel | Acrylic |
| Flow Restrictor | Polypropylene (PP) |
| Housing Material | Acrylic |
| Material O-ring | Seal | Silicone (SI) |
| Membrane Material | Polyethersulfone (PES) |
| Membrane Support | Polypropylene (PP) |
| Pressure Indicator | Polypropylene (PP), Stainless Steel (SS), Polyoxymethylene (POM), Silicone (SIL), Polyamide (PA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| MWCO | 10 kDa |
| Non-recoverable Hold-up | 2 mL |
| Brand | Vivaflow® |
| Device Type | TFF – (Crossflow) |
| Pack Size | 1 |
| Sample Type | Protein Peptide Nanoparticles Virus Nucleic Acid VLP Exosome |
| Dead Stop Volume | N/A |
| Hold-up Volume | 5.3 mL |
| Minimum Recirculation Volume | 20 mL |
| Volume Range | 500 – 5,000 mL |
Technical Specifications
| Application | Macromolecule Concentration Desalting Buffer Exchange |
| Industry | Pharma / Biotech |
| Intended Use | Research Use Only (RUO) |
| Market | Research Environmental |
| Certification | ISO 9001 |
| Fittings | Polyamide (PA) |
| Channel Height | 0.4 mm |
| Channel Width | 10 mm |
| Dimensions Wxdxh | 126 x 38 x 138 mm |
| Membrane Area | 200 cm² |
| Overall Height | 138 mm |
| Pump Flow | 200 – 400 mL/min |
| Tubing | PVC (medical grade) |
| Flow Channel | Acrylic |
| Flow Restrictor | Polypropylene (PP) |
| Housing Material | Acrylic |
| Material O-ring | Seal | Silicone (SI) |
| Membrane Material | Polyethersulfone (PES) |
| Membrane Support | Polypropylene (PP) |
| Pressure Indicator | Polypropylene (PP), Stainless Steel (SS), Polyoxymethylene (POM), Silicone (SIL), Polyamide (PA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| MWCO | 10 kDa |
| Non-recoverable Hold-up | 2 mL |
| Brand | Vivaflow® |
| Device Type | TFF – (Crossflow) |
| Pack Size | 1 |
| Sample Type | Protein Peptide Nanoparticles Virus Nucleic Acid VLP Exosome |
| Dead Stop Volume | N/A |
| Hold-up Volume | 5.3 mL |
| Minimum Recirculation Volume | 20 mL |
| Volume Range | 500 – 5,000 mL |
Technical Specifications
| Application | Macromolecule Concentration Desalting Buffer Exchange |
| Industry | Pharma / Biotech |
| Intended Use | Research Use Only (RUO) |
| Market | Research Environmental |
| Certification | ISO 9001 |
| Fittings | Polyamide (PA) |
| Channel Height | 0.4 mm |
| Channel Width | 10 mm |
| Dimensions Wxdxh | 126 x 38 x 138 mm |
| Membrane Area | 200 cm² |
| Overall Height | 138 mm |
| Pump Flow | 200 – 400 mL/min |
| Tubing | PVC (medical grade) |
| Flow Channel | Acrylic |
| Flow Restrictor | Polypropylene (PP) |
| Housing Material | Acrylic |
| Material O-ring | Seal | Silicone (SI) |
| Membrane Material | Polyethersulfone (PES) |
| Membrane Support | Polypropylene (PP) |
| Pressure Indicator | Polypropylene (PP), Stainless Steel (SS), Polyoxymethylene (POM), Silicone (SIL), Polyamide (PA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| MWCO | 10 kDa |
| Non-recoverable Hold-up | 2 mL |
| Brand | Vivaflow® |
| Device Type | TFF – (Crossflow) |
| Pack Size | 1 |
| Sample Type | Protein Peptide Nanoparticles Virus Nucleic Acid VLP Exosome |
| Dead Stop Volume | N/A |
| Hold-up Volume | 5.3 mL |
| Minimum Recirculation Volume | 20 mL |
| Volume Range | 500 – 5,000 mL |
Technical Specifications
| Application | Macromolecule Concentration Desalting Buffer Exchange |
| Industry | Pharma / Biotech |
| Intended Use | Research Use Only (RUO) |
| Market | Research Environmental |
| Certification | ISO 9001 |
| Fittings | Polyamide (PA) |
| Channel Height | 0.4 mm |
| Channel Width | 10 mm |
| Dimensions Wxdxh | 126 x 38 x 138 mm |
| Membrane Area | 200 cm² |
| Overall Height | 138 mm |
| Pump Flow | 200 – 400 mL/min |
| Tubing | PVC (medical grade) |
| Flow Channel | Acrylic |
| Flow Restrictor | Polypropylene (PP) |
| Housing Material | Acrylic |
| Material O-ring | Seal | Silicone (SI) |
| Membrane Material | Polyethersulfone (PES) |
| Membrane Support | Polypropylene (PP) |
| Pressure Indicator | Polypropylene (PP), Stainless Steel (SS), Polyoxymethylene (POM), Silicone (SIL), Polyamide (PA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| MWCO | 10 kDa |
| Non-recoverable Hold-up | 2 mL |
| Brand | Vivaflow® |
| Device Type | TFF – (Crossflow) |
| Pack Size | 1 |
| Sample Type | Protein Peptide Nanoparticles Virus Nucleic Acid VLP Exosome |
| Dead Stop Volume | N/A |
| Hold-up Volume | 5.3 mL |
| Minimum Recirculation Volume | 20 mL |
| Volume Range | 500 – 5,000 mL |
Technical Specifications
| Application | Macromolecule Concentration Desalting Buffer Exchange |
| Industry | Pharma / Biotech |
| Intended Use | Research Use Only (RUO) |
| Market | Research Environmental |
| Certification | ISO 9001 |
| Fittings | Polyamide (PA) |
| Channel Height | 0.4 mm |
| Channel Width | 10 mm |
| Dimensions Wxdxh | 126 x 38 x 138 mm |
| Membrane Area | 200 cm² |
| Overall Height | 138 mm |
| Pump Flow | 200 – 400 mL/min |
| Tubing | PVC (medical grade) |
| Flow Channel | Acrylic |
| Flow Restrictor | Polypropylene (PP) |
| Housing Material | Acrylic |
| Material O-ring | Seal | Silicone (SI) |
| Membrane Material | Polyethersulfone (PES) |
| Membrane Support | Polypropylene (PP) |
| Pressure Indicator | Polypropylene (PP), Stainless Steel (SS), Polyoxymethylene (POM), Silicone (SIL), Polyamide (PA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| MWCO | 10 kDa |
| Non-recoverable Hold-up | 2 mL |
| Brand | Vivaflow® |
| Device Type | TFF – (Crossflow) |
| Pack Size | 1 |
| Sample Type | Protein Peptide Nanoparticles Virus Nucleic Acid VLP Exosome |
| Dead Stop Volume | N/A |
| Hold-up Volume | 5.3 mL |
| Minimum Recirculation Volume | 20 mL |
| Volume Range | 500 – 5,000 mL |
Technical Specifications
| Application | Macromolecule Concentration Desalting Buffer Exchange |
| Industry | Pharma / Biotech |
| Intended Use | Research Use Only (RUO) |
| Market | Research Environmental |
| Certification | ISO 9001 |
| Fittings | Polyamide (PA) |
| Channel Height | 0.4 mm |
| Channel Width | 10 mm |
| Dimensions Wxdxh | 126 x 38 x 138 mm |
| Membrane Area | 200 cm² |
| Overall Height | 138 mm |
| Pump Flow | 200 – 400 mL/min |
| Tubing | PVC (medical grade) |
| Flow Channel | Acrylic |
| Flow Restrictor | Polypropylene (PP) |
| Housing Material | Acrylic |
| Material O-ring | Seal | Silicone (SI) |
| Membrane Material | Polyethersulfone (PES) |
| Membrane Support | Polypropylene (PP) |
| Pressure Indicator | Polypropylene (PP), Stainless Steel (SS), Polyoxymethylene (POM), Silicone (SIL), Polyamide (PA) |
| Maximum Allowable Working Temperature | 60 °C (140 °F) |
| Maximum Operating Pressure | 4 bar (58 psi) |
| MWCO | 10 kDa |
| Non-recoverable Hold-up | 2 mL |
| Brand | Vivaflow® |
| Device Type | TFF – (Crossflow) |
| Pack Size | 1 |
| Sample Type | Protein Peptide Nanoparticles Virus Nucleic Acid VLP Exosome |
| Dead Stop Volume | N/A |
| Hold-up Volume | 5.3 mL |
| Minimum Recirculation Volume | 20 mL |
| Volume Range | 500 – 5,000 mL |
Technical Documents
- Sartorius Ultrafiltration Products for the Concentration and Purification of Viruses Application Note
- Sartorius Ultrafiltration Products in the Preparation of Biological and Medical Nanocarriers - a Short Review
- Appl_Vivaflow200_Antibody_Concentration_for_Protein_A_Column_SL-4080-e.pdf
- Vivaflow® and Vivaspin® Workflow in Protein Research Laboratories
- Lab Filtration Application Note Reference List
- Lab Ultrafiltration and Purification Products Catalog
- Vivaflow® 50 | 50R | 200 — Unique, “Plug & Play” Laboratory Crossflow Devices
- Laboratory Ultrafiltration: Frequently Asked Questions Flyer
- Quick Start Guides: An Overview for Lab Ultrafiltration and Chromatography Products
- Laboratory Ultrafiltration: How to Choose the Optimal Device & Method
- Ultrafiltration Lab Qualification Guide Poster
- Laboratory Ultrafiltration - The Most Complete Product Range Poster
- Laboratory Ultrafiltration Quick Reference Guide Poster
- Vivaflow 50 | 50R | 200
Technical Documents
- Sartorius Ultrafiltration Products for the Concentration and Purification of Viruses Application Note
- Sartorius Ultrafiltration Products in the Preparation of Biological and Medical Nanocarriers - a Short Review
- Appl_Vivaflow200_Antibody_Concentration_for_Protein_A_Column_SL-4080-e.pdf
- Vivaflow® and Vivaspin® Workflow in Protein Research Laboratories
- Lab Filtration Application Note Reference List
- Lab Ultrafiltration and Purification Products Catalog
- Vivaflow® 50 | 50R | 200 — Unique, “Plug & Play” Laboratory Crossflow Devices
- Laboratory Ultrafiltration: Frequently Asked Questions Flyer
- Quick Start Guides: An Overview for Lab Ultrafiltration and Chromatography Products
- Laboratory Ultrafiltration: How to Choose the Optimal Device & Method
- Ultrafiltration Lab Qualification Guide Poster
- Laboratory Ultrafiltration - The Most Complete Product Range Poster
- Laboratory Ultrafiltration Quick Reference Guide Poster
- Vivaflow 50 | 50R | 200
Technical Documents
- Sartorius Ultrafiltration Products for the Concentration and Purification of Viruses Application Note
- Sartorius Ultrafiltration Products in the Preparation of Biological and Medical Nanocarriers - a Short Review
- Appl_Vivaflow200_Antibody_Concentration_for_Protein_A_Column_SL-4080-e.pdf
- Vivaflow® and Vivaspin® Workflow in Protein Research Laboratories
- Lab Filtration Application Note Reference List
- Lab Ultrafiltration and Purification Products Catalog
- Vivaflow® 50 | 50R | 200 — Unique, “Plug & Play” Laboratory Crossflow Devices
- Laboratory Ultrafiltration: Frequently Asked Questions Flyer
- Quick Start Guides: An Overview for Lab Ultrafiltration and Chromatography Products
- Laboratory Ultrafiltration: How to Choose the Optimal Device & Method
- Ultrafiltration Lab Qualification Guide Poster
- Laboratory Ultrafiltration - The Most Complete Product Range Poster
- Laboratory Ultrafiltration Quick Reference Guide Poster
- Vivaflow 50 | 50R | 200
Technical Documents
- Sartorius Ultrafiltration Products for the Concentration and Purification of Viruses Application Note
- Sartorius Ultrafiltration Products in the Preparation of Biological and Medical Nanocarriers - a Short Review
- Appl_Vivaflow200_Antibody_Concentration_for_Protein_A_Column_SL-4080-e.pdf
- Vivaflow® and Vivaspin® Workflow in Protein Research Laboratories
- Lab Filtration Application Note Reference List
- Lab Ultrafiltration and Purification Products Catalog
- Vivaflow® 50 | 50R | 200 — Unique, “Plug & Play” Laboratory Crossflow Devices
- Laboratory Ultrafiltration: Frequently Asked Questions Flyer
- Quick Start Guides: An Overview for Lab Ultrafiltration and Chromatography Products
- Laboratory Ultrafiltration: How to Choose the Optimal Device & Method
- Ultrafiltration Lab Qualification Guide Poster
- Laboratory Ultrafiltration - The Most Complete Product Range Poster
- Laboratory Ultrafiltration Quick Reference Guide Poster
- Vivaflow 50 | 50R | 200
Technical Documents
- Sartorius Ultrafiltration Products for the Concentration and Purification of Viruses Application Note
- Sartorius Ultrafiltration Products in the Preparation of Biological and Medical Nanocarriers - a Short Review
- Appl_Vivaflow200_Antibody_Concentration_for_Protein_A_Column_SL-4080-e.pdf
- Vivaflow® and Vivaspin® Workflow in Protein Research Laboratories
- Lab Filtration Application Note Reference List
- Lab Ultrafiltration and Purification Products Catalog
- Vivaflow® 50 | 50R | 200 — Unique, “Plug & Play” Laboratory Crossflow Devices
- Laboratory Ultrafiltration: Frequently Asked Questions Flyer
- Quick Start Guides: An Overview for Lab Ultrafiltration and Chromatography Products
- Laboratory Ultrafiltration: How to Choose the Optimal Device & Method
- Ultrafiltration Lab Qualification Guide Poster
- Laboratory Ultrafiltration - The Most Complete Product Range Poster
- Laboratory Ultrafiltration Quick Reference Guide Poster
- Vivaflow 50 | 50R | 200
Technical Documents
- Sartorius Ultrafiltration Products for the Concentration and Purification of Viruses Application Note
- Sartorius Ultrafiltration Products in the Preparation of Biological and Medical Nanocarriers - a Short Review
- Appl_Vivaflow200_Antibody_Concentration_for_Protein_A_Column_SL-4080-e.pdf
- Vivaflow® and Vivaspin® Workflow in Protein Research Laboratories
- Lab Filtration Application Note Reference List
- Lab Ultrafiltration and Purification Products Catalog
- Vivaflow® 50 | 50R | 200 — Unique, “Plug & Play” Laboratory Crossflow Devices
- Laboratory Ultrafiltration: Frequently Asked Questions Flyer
- Quick Start Guides: An Overview for Lab Ultrafiltration and Chromatography Products
- Laboratory Ultrafiltration: How to Choose the Optimal Device & Method
- Ultrafiltration Lab Qualification Guide Poster
- Laboratory Ultrafiltration - The Most Complete Product Range Poster
- Laboratory Ultrafiltration Quick Reference Guide Poster
- Vivaflow 50 | 50R | 200
Technical Documents
- Sartorius Ultrafiltration Products for the Concentration and Purification of Viruses Application Note
- Sartorius Ultrafiltration Products in the Preparation of Biological and Medical Nanocarriers - a Short Review
- Appl_Vivaflow200_Antibody_Concentration_for_Protein_A_Column_SL-4080-e.pdf
- Vivaflow® and Vivaspin® Workflow in Protein Research Laboratories
- Lab Filtration Application Note Reference List
- Lab Ultrafiltration and Purification Products Catalog
- Vivaflow® 50 | 50R | 200 — Unique, “Plug & Play” Laboratory Crossflow Devices
- Laboratory Ultrafiltration: Frequently Asked Questions Flyer
- Quick Start Guides: An Overview for Lab Ultrafiltration and Chromatography Products
- Laboratory Ultrafiltration: How to Choose the Optimal Device & Method
- Ultrafiltration Lab Qualification Guide Poster
- Laboratory Ultrafiltration - The Most Complete Product Range Poster
- Laboratory Ultrafiltration Quick Reference Guide Poster
- Vivaflow 50 | 50R | 200
Detailed Description
Vivaflow® 200 is a ready to use and reusable laboratory crossflow cassette for concentrating up to 2.5L samples. The active membrane surface area per device is 200 cm2. One unit is supplied with all necessary tubing, fittings and accessories for running the device with a laboratory pump and a size 16 pump head. For faster concentration or to process up to 5 L samples, two cassettes can be operated simultaneously, in parallel.
Vivaflow® multi-use laboratory crossflow cassettes are versatile, economical options for concentration and diafiltration in various applications. The cassettes are ready to use out of the box, and may be re-used to process several samples. They are simple and efficient, utilizing a unique flip-flow channel design that ensures optimal flux with no optimization effort. These cassettes are easy to use, reliable, and the best choice given their unrivaled flexibility compared to any laboratory ultrafiltration system in the market.
7 Product Options
Catalog Number:
60-2007
List Price:
$1106.76
Your Price:
$948.65
Specifications:
| MWCO | 5 kDa |
| Description | 5,000 MWCO, PES |
| Qty/Unit | 1 Vivaflow/Unit |
Catalog Number:
60-945
List Price:
$1106.99
Your Price:
$948.85
Specifications:
| MWCO | 30 kDa |
| Description | 30,000 MWCO, PES |
| Qty/Unit | 1 Devices/Unit |
Catalog Number:
60-2009
List Price:
$1100.26
Your Price:
$943.09
Specifications:
| MWCO | 0.2 µm |
| Description | 0.2µm, PES |
| Qty/Unit | 1 Vivaflow/Unit |
Catalog Number:
60-2010
List Price:
$1106.76
Your Price:
$948.65
Specifications:
| MWCO | 3 kDa |
| Description | 3,000 MWCO, PES |
| Qty/Unit | 1 Vivaflow/Unit |
Catalog Number:
60-2006
List Price:
$1106.99
Your Price:
$948.85
Specifications:
| MWCO | 10 kDa |
| Description | 10,000 MWCO, PES |
| Qty/Unit | 1 Vivaflow/Unit |
Catalog Number:
60-2008
List Price:
$1106.99
Your Price:
$948.85
Specifications:
| MWCO | 100 kDa |
| Description | 100,000 MWCO, PES |
| Qty/Unit | 1 Vivaflow/Unit |
Catalog Number:
60-946
List Price:
$1106.99
Your Price:
$948.85
Specifications:
| MWCO | 50 kDa |
| Description | 50,000 MWCO, PES |
| Qty/Unit | 1 Devices/Unit |
| Catalog # | Description | Qty/Unit | MWCO | Price (USD) | Quantity | Add to Order | |
|---|---|---|---|---|---|---|---|
| 60-2006 | 10,000 MWCO, PES | 1 Vivaflow/Unit | 10 kDa | ||||
| 60-2007 | 5,000 MWCO, PES | 1 Vivaflow/Unit | 5 kDa | ||||
| 60-2008 | 100,000 MWCO, PES | 1 Vivaflow/Unit | 100 kDa | ||||
| 60-2009 | 0.2µm, PES | 1 Vivaflow/Unit | 0.2 µm | ||||
| 60-2010 | 3,000 MWCO, PES | 1 Vivaflow/Unit | 3 kDa | ||||
| 60-945 | 30,000 MWCO, PES | 1 Devices/Unit | 30 kDa | ||||
| 60-946 | 50,000 MWCO, PES | 1 Devices/Unit | 50 kDa |
!
