Product Overview
- Membrane: 0.2µm polyethersulfone
- Prefilter: High purity binder-free quartz microfibers
- Housing: Transparent polycarbonate with PTFE automatic venting
- Housing diameter: 61mm
- Inlet: Female Luer-Lock
- Outlet: Hose barb with filling bell and lid
- Filtration Area: 21 cm²
- Holdup Volume: 1.2ml
Technical Specifications
| Application | Clarification |
| Application Area | Sterile filtration |
| Filling Bell | Yes |
| Prefilter | Yes |
| Connector Inlet | Female Luer Lock |
| Connector Outlet | Hose Barb 6–12 mm Stepped |
| Filter Diameter | 61 mm |
| Filtration Area | 20 cm² |
| Housing Dimensions | 61 x 50 mm |
| Venting Filter | Yes |
| Flow Rate | ≥ 400 mL/min at 1 bar |
| Total Throughput | Up to 10 L |
| Vent | Yes |
| Ph Range | 1.0 – 10.0 |
| Housing Material | Polycarbonate (PC) |
| Material Prefilters | Quartz Microfibers |
| Membrane Material | Polyethersulfone (PES) |
| Maximum Allowable Working Temperature | 50 °C (122 °F) |
| Operating Pressure | 4 bar |
| Bubble Point | ≥ 3.2 bar (46 psi) with water |
| Burst Pressure | ≥ 0.5 bar (72.5 psi) |
| Non-fiber Releasing | This filter product complies with the title 21 of the Code of Federal Regulations (CFR), section 210.3(b)(6) and 211.72. |
| Pore Size | 0.2 µm |
| Wettability | Hydrophilic |
| Brand | Sartolab® P20 |
| Device Type | Pressure filters with prefilter |

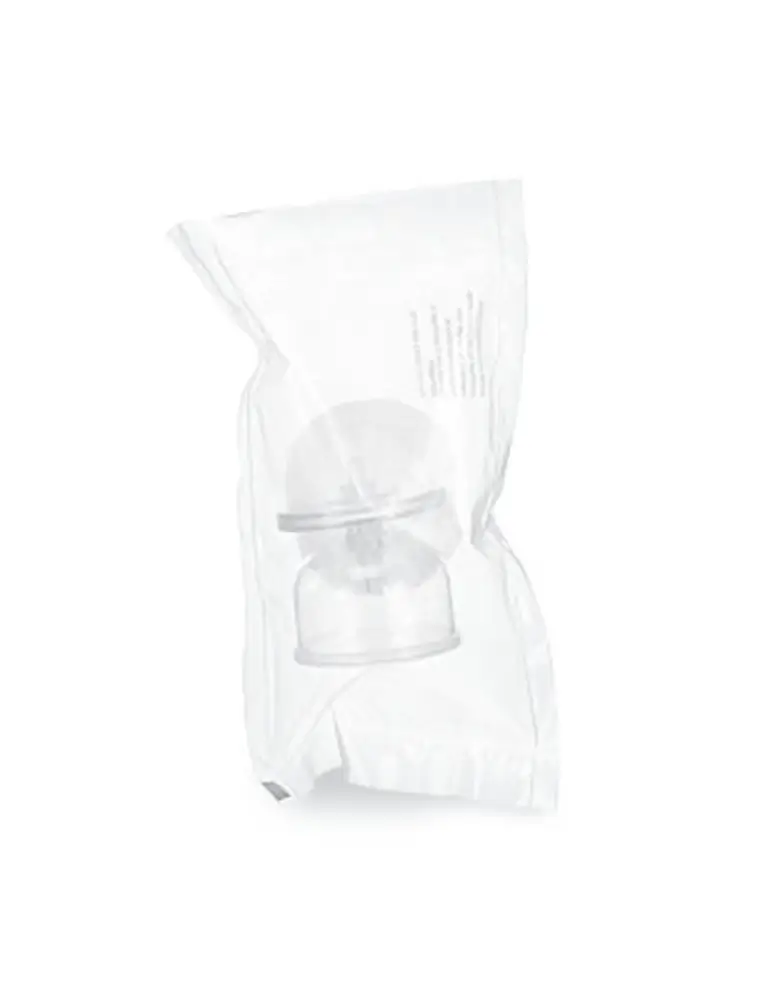

| Packaging | Single pouch packed |
| Sample Type | Aqueous |
| Delivery Condition | Sterile |
| Sterilization Method | Ethylene oxide |
| Hold-up Volume | 1.2 mL before bubble point |
| Volume | Up to 10 L |
Detailed Description
The Sartolab® P20 Plus is a pressure filtration unit for sterile filtration or clarification of media, aqueous solutions and solvent mixtures in batches ranging from 100ml to 10 L.
