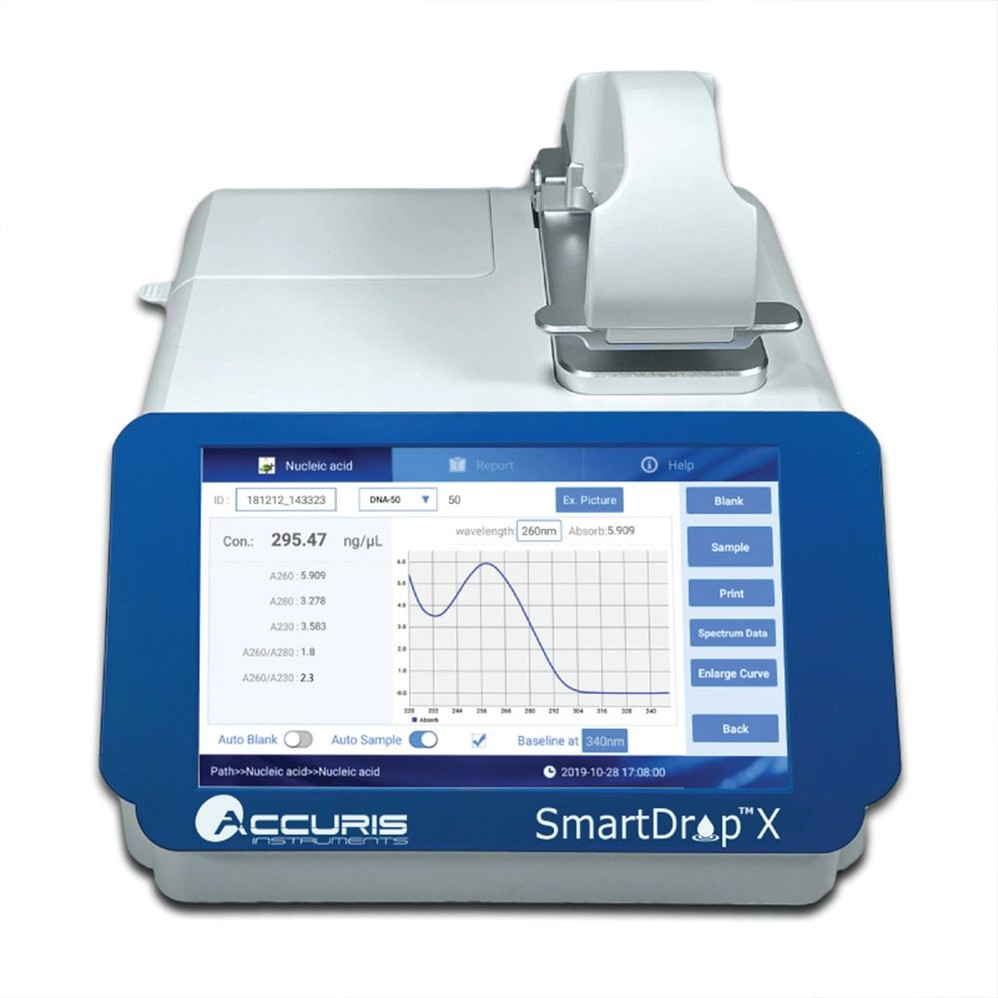

SmartDrop™ X Nano Spectrophotometer
115V, US Plug, 1 Spectrophotometer/Unit
250V, EU Plug, 1 Spectrophotometer/Unit
2 product variations: View Options
Product Overview
- Full-spectrum absorbance scans from 200 to 800nm
- Quickly calculates and displays 260/280 and 260/230 ratios
- Long-life Xenon lamp and linear array CCD detector
- Auto-ranging path lengths of 0.2mm and 1.0mm
- Detect up to 4,500 ng/µl of dsDNA without dilution
- Print results using the built-in thermal printer
- Save results to a USB flash drive for easy data export
Product Overview
- Full-spectrum absorbance scans from 200 to 800nm
- Quickly calculates and displays 260/280 and 260/230 ratios
- Long-life Xenon lamp and linear array CCD detector
- Auto-ranging path lengths of 0.2mm and 1.0mm
- Detect up to 4,500 ng/µl of dsDNA without dilution
- Print results using the built-in thermal printer
- Save results to a USB flash drive for easy data export
Technical Specifications
| Brand | Accuris |
| Display | 7-inch touch screen |
| Minimum Sample Volume | 0.5µl - 2.0µl |
| Path Length | 0.2mm, 1.0mm |
| Light Source | Xenon Flash Lamp |
| Detector | 2048 Element Linear Silicon CCD array |
| Wavelength | 200 - 800nm (1 nm steps) |
| Absorbance Range | 0.04 - 90 A (10 mm equivalent) |
| Absorbance Precision | 0.003 A |
| Detection Range dsDNA | 2 - 4,500ng/µl |
| Detection Time | < 6 seconds |
| Voltage Input | DC 24V, 2A |
| Power | 25W |
| Dimensions (WxDxH) | 8.2 x 11.0 x 7.3 in. / 20.8 x 28.0 x 18.6 cm |
| Weight | 7.9 lbs. (3.6 kg) |
Technical Specifications
| Brand | Accuris |
| Display | 7-inch touch screen |
| Minimum Sample Volume | 0.5µl - 2.0µl |
| Path Length | 0.2mm, 1.0mm |
| Light Source | Xenon Flash Lamp |
| Detector | 2048 Element Linear Silicon CCD array |
| Wavelength | 200 - 800nm (1 nm steps) |
| Absorbance Range | 0.04 - 90 A (10 mm equivalent) |
| Absorbance Precision | 0.003 A |
| Detection Range dsDNA | 2 - 4,500ng/µl |
| Detection Time | < 6 seconds |
| Voltage Input | DC 24V, 2A |
| Power | 25W |
| Dimensions (WxDxH) | 8.2 x 11.0 x 7.3 in. / 20.8 x 28.0 x 18.6 cm |
| Weight | 7.9 lbs. (3.6 kg) |
Detailed Description
A full spectrum UV-Vis spectrophotometer, SmartDrop X requires 0.5 to 2.0µl of sample. In addition to nucleic acid and protein calculations, the software has preset programs for BCA, Bradford and Lowry assays. A full spectrum analysis can be performed in about 6 seconds, aiding in the identification of unknowns. Up to 5 specific points on the spectrum can be selected for colorimetric readings output.
The long life Xenon lamp source requires no warm up and is paired with a highly sensitive CCD detector. To provide the most accurate results, the SmartDrop X utilizes 2 path lengths.
2 Product Options
Catalog Number:
33-790X
List Price:
$17124.66
Your Price:
$14678.28
Specifications:
| Plug Type | US |
| Description | 115V, US Plug |
| Qty/Unit | 1 Spectrophotometer/Unit |
Catalog Number:
33-790XE
List Price:
$17124.66
Your Price:
$14678.28
Specifications:
| Plug Type | European, 230v |
| Description | 250V, EU Plug |
| Qty/Unit | 1 Spectrophotometer/Unit |
!
